@sixclear/scanivalve-mps4264
Scanivalve MPS 4264 v1.0.0

Overview

The Scanivalve 4264 MPS plugin works with the Scanivalve 4264 MPS pressure scanner. The Scanivalve MPS 4264 plugin scans up to 64 pressure channels at a configurable scan rate. Each scan returns pressure data, a temperature, and the sample count.

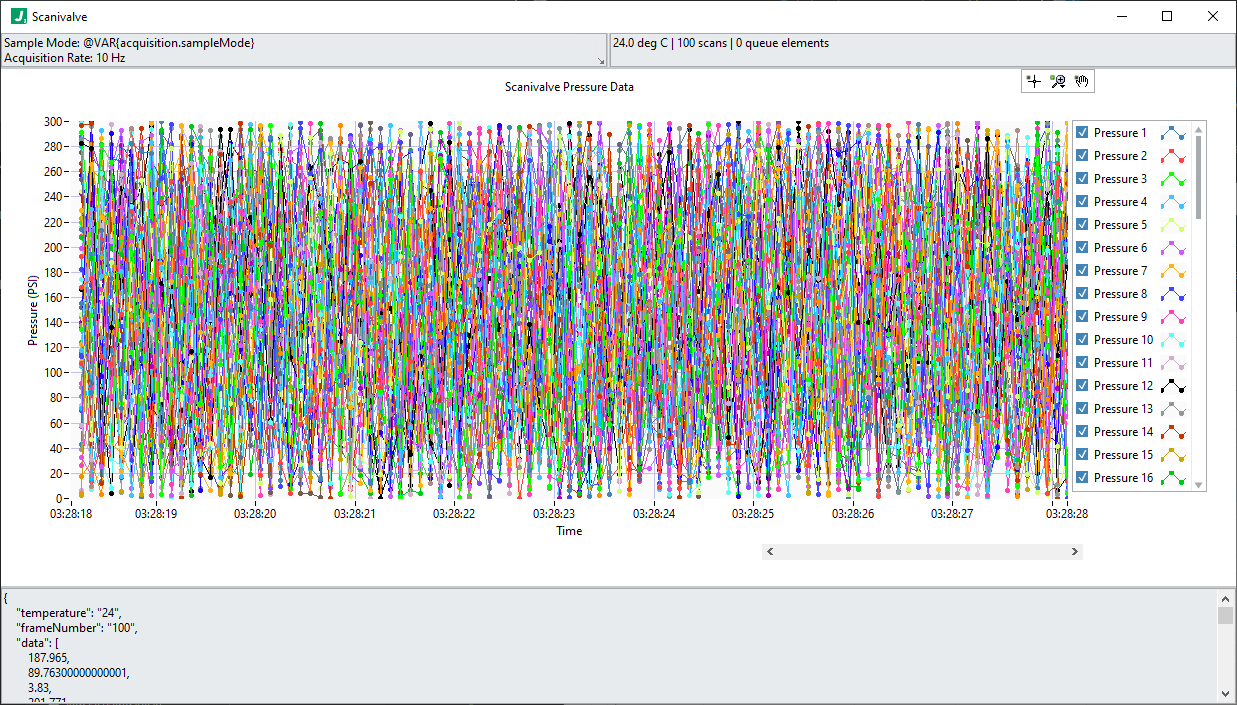

User Interface

The interface has configurable sections at the top where configuration parameters may be displayed at run-time. Below that we have a large graph with many of the usual features exposed including zoom, pan, scrolling, and the ability to show/hide any of the 64 data plots. The bottom section shows the configurable, published data.


Configuration Example


Configuration Details

ROOT object
This top level object holds all configuration information for this plugin.
Required: true
Default: (not specified; see any element defaults within)
options object
Configuration options specific to this plugin.
Required: true
Default: (not specified; see any element defaults within)
options.connection object
An object defining the connection.
Required: true
Default: (not specified; see any element defaults within)
options.connection.simulationMode boolean
Whether to use simulation mode.
Required: true
Default: false
options.connection.address string
The IP address of the Scanivalv.
Required: true
Default: "192.168.1.2"
options.connection.commandPort integer
The port to use for sending commands. This will almost certainly need to be 23.
Required: true
Default: 23
options.connection.scanPort integer
The port to use for receiving scan data. This will almost certainly need to be 503.
Required: true
Default: 503
options.acquisition object
An object defining the acquisition.
Required: true
Default:
{
    "mode": "Continuous Samples",
    "samplingRate": 100,
    "numberOfChannels": 64,
    "timeout": 5000,
    "units": "PSI",
    "pressureChannelNames": []
}
options.acquisition::{Continuous Samples} object
An object describing a continuous acquisition.
Required: false
Default: (not specified; see any element defaults within)
options.acquisition::{Continuous Samples}.mode enum (string)
Continuous samples means acquire samples continuously until the plugin is shut down.
Required: true
Default: "Continuous Samples"
Enum Items: "Continuous Samples"
options.acquisition::{Continuous Samples}.samplingRate number
The sampling rate to use specified in samples/second (Hz).
Required: true
Default: 100
options.acquisition::{Continuous Samples}.numberOfChannels enum (integer)
The number of channels to acquire data on. This should be 64 unless high-speed mode is used which may decrease the number of channels to 16
Required: true
Default: 64
Enum Items: 64 | 16
options.acquisition::{Continuous Samples}.timeout integer
How long to wait in milliseconds before generating a timeout error when reading data.
Required: true
Default: 5000
options.acquisition::{Continuous Samples}.units enum (string)
The units in which the returned pressure measurements are returned.
Required: true
Default: "PSI"
Enum Items: "PSI" | "ATM" | "BAR" | "CMHG" | "CMH2O" | "DECIBAR" | "FTH2O" | "GCM2" | "INHG" | "INH2O" | "KNM2" | "KGM2" | "KGCM2" | "KPA" | "KIPIN2" | "MPA" | "MBAR" | "MH2O" | "MMHG" | "NM2" | "NCM2" | "OZIN2" | "OZFT2" | "PA" | "PSF" | "TORR" | "USER" | "RAW"
options.acquisition::{Continuous Samples}.pressureChannelNames array
Names to assign to the pressure channels here. Note that this can have at most 64 values corresponding to the total number of pressure channels on the Scanivalv. For example, if the sensors are located at locations which can be named, this is a place to capture this association and will be used in the plot legend on the graph interface, as well as in the column headers of the logged data. If left as an empty array, the following channel names will be used: Pressure 1, Pressure 2, ... Pressure 64.
Required: true
Default:
[]
options.acquisition::{Continuous Samples}.pressureChannelNames[n] string
Provide a semantic name for a pressure channel.
Required: false
Default: "Pressure 1"
options.acquisition::{Finite Samples} object
An object describing a continuous acquisition.
Required: false
Default: (not specified; see any element defaults within)
options.acquisition::{Finite Samples}.mode enum (string)
Finite samples means only finitely many samples are acquired.
Required: true
Default: "Finite Samples"
Enum Items: "Finite Samples"
options.acquisition::{Finite Samples}.samplingRate number
The sampling rate to use specified in samples/second (Hz).
Required: true
Default: 100
options.acquisition::{Finite Samples}.numberOfChannels enum (integer)
The number of channels to acquire data on. This must be 64 unless high-speed mode is used which may decrease the number of channels to 16
Required: true
Default: 64
Enum Items: 64 | 16
options.acquisition::{Finite Samples}.totalSamplesPerChannel integer
The total number of samples per channel to acquire.
Required: true
Default: 100
options.acquisition::{Finite Samples}.timeout integer
How long to wait in milliseconds before generating a timeout error when reading data.
Required: true
Default: 5000
options.acquisition::{Finite Samples}.units enum (string)
The units in which the returned pressure measurements are returned.
Required: true
Default: "PSI"
Enum Items: "PSI" | "ATM" | "BAR" | "CMHG" | "CMH2O" | "DECIBAR" | "FTH2O" | "GCM2" | "INHG" | "INH2O" | "KNM2" | "KGM2" | "KGCM2" | "KPA" | "KIPIN2" | "MPA" | "MBAR" | "MH2O" | "MMHG" | "NM2" | "NCM2" | "OZIN2" | "OZFT2" | "PA" | "PSF" | "TORR" | "USER" | "RAW"
options.acquisition::{Finite Samples}.pressureChannelNames array
Names to assign to the pressure channels here. Note that this can have at most 64 values corresponding to the total number of pressure channels on the Scanivalv. For example, if the sensors are located at locations which can be named, this is a place to capture this association and will be used in the plot legend on the graph interface, as well as in the column headers of the logged data. If left as an empty array, the following channel names will be used: Pressure 1, Pressure 2, ... Pressure 64.
Required: true
Default:
[]
options.acquisition::{Finite Samples}.pressureChannelNames[n] string
Provide a semantic name for a pressure channel.
Required: false
Default: "Pressure 1"
options.display object
An object defining properties of the plugin display.
Required: true
Default: (not specified; see any element defaults within)
options.display.enable boolean
Whether to enable the display / graph.
Required: true
Default: true
options.display.updatePeriod integer
The period with which to update the user interface. This does not impact the acquisition or storage of samples.
Required: true
Default: 1000
options.display.graph object
An object defining properties of the graph on the interface.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.label string
The label to display on the chart.
Required: true
Default: "My Plot Name"
options.display.graph.historyLength integer
The number of samples to store for display in the graph per pressure channel.
Required: true
Default: 1000
options.display.graph.xAxis object
This configuration for the x-axis required configuring label, format, duration, and numTicks.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.xAxis.label string
The x-axis label to display.
Required: true
Default: "x-axis"
options.display.graph.xAxis.format string
A string defining the x-axis format.
Required: true
Default: "%<%I:%M:%S>T"
options.display.graph.xAxis.duration number
The time duration in seconds to display on the x-axis.
Required: true
Default: 10
options.display.graph.xAxis.numTicks number
The number of ticks to show on the x-axis.
Required: true
Default: 5
options.display.graph.yAxis object
The y-axis properties.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.yAxis.label string
The y-axis label to display.
Required: true
Default: "y-axis"
options.display.graph.yAxis.flipped boolean
Whether to flip the y-axis (ex. if true, instead of rendering 0 on the bottom and 10 on the top of the y-axis, it would render 0 on the top and 10 on the bottom.
Required: true
Default: false
options.display.graph.yAxis.min number
The y-axis min value.
Required: true
Default: 0
options.display.graph.yAxis.max number
The y-axis max value.
Required: true
Default: 10
options.display.graph.yAxis.increment number
The y-axis increment used to display y-axis tick marks.
Required: true
Default: 1
options.display.graph.yAxis.format string
A string defining the y-axis format.
Required: true
Default: "%d"
options.display.graph.yAxis.autoscale enum (string)
Whether to autoscale the y-axis. The value "on" autoscales on every update, "off" never autoscales, and "once" autoscales just once when data is first rendered.
Required: true
Default: "on"
Enum Items: "on" | "off" | "once"
options.display.graph.plotArea object
The plot area properties.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.plotArea.fgColor object
The plot area foreground color specified as an RGB value.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.plotArea.fgColor.r integer
The red component of the RGB color definition.
Required: true
Default: 255
options.display.graph.plotArea.fgColor.g integer
The green component of the RGB color definition.
Required: true
Default: 255
options.display.graph.plotArea.fgColor.b integer
The blue component of the RGB color definition.
Required: true
Default: 255
options.display.graph.plotArea.bgColor object
The plot area background color specified as an RGB value.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.plotArea.bgColor.r integer
The red component of the RGB color definition.
Required: true
Default: 250
options.display.graph.plotArea.bgColor.g integer
The green component of the RGB color definition.
Required: true
Default: 250
options.display.graph.plotArea.bgColor.b integer
The blue component of the RGB color definition.
Required: true
Default: 250
options.display.graph.palette object
An object defining properties for the graph palette.
Required: true
Default: (not specified; see any element defaults within)
options.display.graph.palette.initialTool enum (string)
Sets the initial active tool for the graph palette. Valid options: `Selection Cursor`, `Panning Tool`, `Zoom to Rectangle`, `Zoom X`, `Zoom Y`, `Zoom To Fit`, `Zoom Out At Point`, and `Zoom In At Point`. The graph palette is manually accessible just above the graph, where the active tool can also be changed at any time.
Required: true
Default: "Zoom X"
Enum Items: "Selection Cursor" | "Panning Tool" | "Zoom to Rectangle" | "Zoom X" | "Zoom Y" | "Zoom To Fit" | "Zoom Out At Point" | "Zoom In At Point"
options.display.decimationFactor integer
The decimation factor for publishing. A factor of N means publish every Nth data payload.
Required: true
Default: 1
options.display.horizontalLines array
An array of horizontal line definitions.
Required: true
Default:
[]
options.display.horizontalLines[n] object
A horizontal line definition
Required: false
Default: (not specified; see any element defaults within)
options.display.horizontalLines[n].name string
The name of the horizontal line. This shows up in the plot legend on the front panel waveform chart.
Required: true
Default: "My Horizontal Line"
options.display.horizontalLines[n].yValue number
The y-value of the horizontal line.
Required: true
Default: 10
options.display.plotProperties object
An object where keys are plot names (form the acquisition.channels or horizontalLines definitions) and the values are objects with plot display properties.
Required: true
Default:
{}
options.display.plotProperties.{^.+$} object
An object defining the plot properties.
Required: false
Default: (not specified; see any element defaults within)
options.display.plotProperties.{^.+$}.visible boolean
Whether the plot is visible in the chart.
Required: true
Default: true
options.display.plotProperties.{^.+$}.antiAlias boolean
Whether the apply antiAliasing when rendering the plot.
Required: true
Default: true
options.display.plotProperties.{^.+$}.pointStyle enum (string)
The point style to use for the plot.
Required: true
Default: "circleFull"
Enum Items: "none" | "circleEmpty" | "circleFull" | "circleFullDot" | "circleEmptyDot" | "squareEmpty" | "squareFull" | "squareFullDot" | "squareEmptyDot" | "squareFullSmall" | "dot" | "cross" | "crossSmall" | "X" | "x" | "diamondFullDot" | "squareEmptySmall"
options.display.plotProperties.{^.+$}.lineStyle enum (string)
The line style to use for the plot.
Required: true
Default: "solid"
Enum Items: "solid" | "dash" | "dot" | "dashdot" | "dashdotdot"
options.display.plotProperties.{^.+$}.lineWidth enum (string)
The line width to use for the plot.
Required: true
Default: "1"
Enum Items: "0" | "1" | "2" | "3" | "4" | "5"
options.display.plotProperties.{^.+$}.fillTo enum (string)
The color fill approach to use for the plot. For example, "below" would apply the line color to the area below the plot in the chart.
Required: true
Default: "none"
Enum Items: "none" | "zero" | "below" | "above"
options.display.plotProperties.{^.+$}.interpolation enum (string)
The interpolation strategy to apply between points.
Required: true
Default: "none"
Enum Items: "none" | "stepwiseVertical" | "linear" | "stepwiseHorizontal" | "stepwiseHorizontalCentered" | "stepwiseVerticalCentered"
options.display.plotProperties.{^.+$}.lineColor objectstring
The color to use for the plot line specified as an RGB value. Specify this as either a string `auto` or an object with `r`, `g`, and `b` values.
Required: true
Default: "auto"
options.display.plotProperties.{^.+$}.pointColor objectstring
The color to use for plot points specified as an RGB value.
Required: true
Default: "auto"
options.display.description object
Defines how the description string on the interface will display, including its text, height in lines, justification, and font properties.
Required: true
Default:
{
    "text": "Acquisition Rate: @VAR{acquisition.sampling.rate} Hz",
    "height": 2,
    "justify": "Left",
    "font": {
        "name": "App Font",
        "size": 15,
        "bold": false,
        "italic": false,
        "underline": false,
        "strikethrough": false,
        "color": {
            "r": 0,
            "g": 0,
            "b": 0
        }
    }
}
options.display.description.text string
The text to render in the description string on the interface. This can use any acquisition configuration options with variables such as `@VAR{acquisition.sampling.rate}`.
Required: true
Default: "Acquisition Rate: @VAR{acquisition.sampling.rate} Hz"
options.display.description.height integer
The height of the description section in lines. The minimum is 1.
Required: true
Default: 0
options.display.description.justify enum (string)
The justification orientation of the text. One of: Left, Center, Right.
Required: true
Default: "Left"
Enum Items: "Left" | "Center" | "Right"
options.display.description.font object
Defines the font properties used to display the description text.
Required: true
Default:
{
    "name": "App Font",
    "size": 15,
    "bold": false,
    "italic": false,
    "underline": false,
    "strikethrough": false,
    "color": {
        "r": 0,
        "g": 0,
        "b": 0
    }
}
options.display.description.font.name string
The name of the font to apply. The available font names depend on the fonts installed with your operating system. For example, `Arial` is often an installed font and should work here.
Required: false
Default: "App Font"
options.display.description.font.size integer
The size of the font in pixels.
Required: false
Default: 0
options.display.description.font.bold boolean
Whether to bold the font.
Required: false
Default: false
options.display.description.font.italic boolean
Whether to italicize the font.
Required: false
Default: false
options.display.description.font.underline boolean
Whether to underline the font.
Required: false
Default: false
options.display.description.font.strikethrough boolean
Whether to strike through the font.
Required: false
Default: false
options.display.description.font.color object
The font color defined as r, g, b.
Required: false
Default: (not specified; see any element defaults within)
options.display.description.font.color.r integer
The red component of the RGB color definition.
Required: false
Default: 100
options.display.description.font.color.g integer
The green component of the RGB color definition.
Required: false
Default: 100
options.display.description.font.color.b integer
The blue component of the RGB color definition.
Required: false
Default: 100
options.publishing object
An object defining if and how the plugin publishes data.
Required: true
Default: (not specified; see any element defaults within)
options.publishing.enable boolean
Whether to enable publishing.
Required: true
Default: false
options.publishing.decimationFactor integer
The decimation factor for publishing. A factor of N means publish every Nth data payload.
Required: true
Default: 1
options.publishing.messageFormat object
An object defining the published message format, if publishing is enabled. Several variables are available for use in constructing the published message in a VAR variable container: instanceName (the name of the plugin instance), units (the units of the pressure measurement), channelsPerScan (the number of pressure channels measured on each scan), scanRate (the specified sampling rate), actualSamplingRate (the actual achieved sampling rate in hardware), temperature (the temperature returned from the Scanivalv), publishTime (the timestamp that the current message was published), acquisitionStartTime (the timestamp for the start of the acquisition), data (the data for each pressure channel), frameNumber (the number of samples acquired thus far for the current acquisition), and acquisitionStartTime (the time the acquisition started). Note that timestamps are the number of seconds elapsed since 12:00 a.m., Friday, January 1, 1904, Universal Time [01-01-1904 00:00:00]
Required: true
Default: (not specified; see any element defaults within)
options.publishing.messageFormat.{^.+$} arraybooleanintegernumberobjectstring
An element of data to publish.
Required: false
Default:
[]
options.logger object
Defines the standard logger for this plugin. Note that a LOG variable space is provided here, as well as the VAR variable space. Available variables are: @LOG{LOGGERNAME}, @LOG{TIMESTAMP}, @LOG{LOGMESSAGE}, @LOG{ERRORMESSAGE}, @VAR{instanceName}, @VAR{timestamp}, and @VAR{acquisition} which contains the entire acquisition object meaning you can index out individual properties such as @VAR{acquisition.sampling.readSamplesPerChannel} are available variables. Note: @LOG{LOGGERNAME} is equal to the @VAR{instanceName} here.
Required: true
Default: (not specified; see any element defaults within)
options.logger.Enable boolean
Whether to enable the logger.
Required: true
Default: true
options.logger.LogFolder string
The folder in which to write log files.
Required: true
Default: "\\JADE_LOGS\\@VAR{instanceName}"
options.logger.FileNameFormat string
The filename to use when creating log files. Note: if the filesize limit is reached new files will be created with enumerated suffixes such as: MyLogFile-1.txt, MyLogFile-2.txt, etc.
Required: true
Default: "@VAR{instanceName}-@LOG{TIMESTAMP}.log"
options.logger.ErrorsOnly boolean
Whether to log only errors.
Required: true
Default: true
options.logger.DiskThrashPeriod integer
The period in milliseconds with which to flush the file buffer to ensure it's committed to the hard drive. Note: This is a performance consideration to prevent writing to disk too frequently.
Required: true
Default: 1000
options.logger.FileSizeLimit integer
The file size at which to create new files.
Required: true
Default: 1000000
options.logger.StartLogFormat string
The initial string to put into the log file when opened for the first time. The variable @VAR{columnHeaders} is available here which contains the precise column headers CSV row based on the channelsPerScan setting.
Required: true
Default: "@VAR{columnHeaders}"
options.logger.EndLogFormat string
The final string to put in the log file when closed.
Required: true
Default: ""
options.logger.LogEntryFormat string
The format to use when writing log entries when errors are not present.
Required: true
Default: "\n@LOG{LOGMESSAGE}"
options.logger.ErrorLogEntryFormat string
The message format used to construct error log entries.
Required: true
Default: "\n\n@LOG{ERRORMESSAGE}\n\n"
options.logger.TimestampFormat string
The format used by the @LOG{TIMESTAMP} variable.
Required: true
Default: "%Y-%m-%d %H-%M-%S%3u"
panel object
Required: true
Default: (not specified; see any element defaults within)
panel.open boolean
Whether to open the front panel immediately when run.
Required: true
Default: true
panel.state enum (string)
The state in which the window will open.
Required: true
Default: "Standard"
Enum Items: "Standard" | "Hidden" | "Closed" | "Minimized" | "Maximized"
panel.transparency integer
The transparency of the window. 0 = opaque, 100 = invisible.
Required: true
Default: 0
panel.title string
The title of the plugin window when it runs. Note that the variable 'instanceName' is provided here in a VAR variable container.
Required: true
Default: "@VAR{instanceName}"
panel.titleBarVisible boolean
Whether the window title bar is visible.
Required: true
Default: true
panel.showMenuBar boolean
Whether the menu bar is visible.
Required: true
Default: false
panel.showToolBar boolean
Whether the toolbar is visible.
Required: true
Default: false
panel.makeActive boolean
Whether the window becomes active when opened.
Required: true
Default: false
panel.bringToFront boolean
Whether the window is brought to the front / top of other windows when opened.
Required: true
Default: false
panel.minimizable boolean
Whether the window is minimizable.
Required: true
Default: true
panel.resizable boolean
Whether the window is resizable.
Required: true
Default: true
panel.closeable boolean
Whether the window is closeable.
Required: true
Default: true
panel.closeWhenDone boolean
Whether to close the window when complete.
Required: true
Default: true
panel.center boolean
Whether to center the window when opened. Note: this property overrides the 'position' property.
Required: true
Default: false
panel.position object
The position of the window when opened the first time.
Required: true
Default: (not specified; see any element defaults within)
panel.position.top integer
The vertical position of the window in pixels from the top edge of the viewport. Note: this property is overriden by the 'center' property.
Required: true
Default: 100
panel.position.left integer
The horizontal position of the window in pixels from the left edge of the viewport. Note: this property is overriden by the 'center' property.
Required: true
Default: 100
panel.size object
The size of the window when opened the first time.
Required: false
Default: (not specified; see any element defaults within)
panel.size.width integer
The width of the window in pixels. -1 means use the default width for the panel. Note that depending on panel features exposed, there may be a limit to how small a panel can become.
Required: true
Default: -1
panel.size.height integer
The height of the window in pixels. -1 means use the default height for the panel. Note that depending on panel features exposed, there may be a limit to how small a panel can become.
Required: true
Default: -1
channel object
The communication channel definition used by this plugin. Note: this section rarely needs modifications. In many cases, the underlying plugin implementation depends on at least some of these settings having the values below. Consult with a JADE expert before making changes to this section if you are unfamiliar with the implications of changes to this section.
Required: true
Default: (not specified; see any element defaults within)
channel.SendBreakTimeout integer
The timeout duration in milliseconds to wait for sending messages.
Required: true
Default: 1000
channel.WaitOnBreakTimeout integer
The timeout duration in milliseconds to wait for receiving messages. Note: -1 means wait indefinitely or until shutdown is signalled.
Required: true
Default: -1
channel.WaitOnShutdownTimeout integer
The timeout duration in milliseconds to wait for shutdown acknowledgment.
Required: true
Default: 2000
channel.ThrowTimeoutErrors boolean
Whether to throw timeout errors vs simply returning a boolean indicating whether a timeout occurred.
Required: true
Default: false
channel.ThrowShutdownUnacknowledgedErrors boolean
Whether to throw 'shutdown unacknowledged' errors.
Required: true
Default: true
channel.QueueSize integer
The size of the underlying communication queue in bytes. Note: -1 means unbounded (i.e. grow as needed with available memory).
Required: true
Default: 100
channel.SendBreakEnqueueType enum (string)
The enqueue strategy employed on the underlying queue for standard messages.
Required: true
Default: "LossyEnqueue"
Enum Items: "Enqueue" | "EnqueueAtFront" | "LossyEnqueue" | "LossyEnqueueAtFront"
channel.SendErrorEnqueueType enum (string)
The enqueue strategy employed on the underlying queue for error messages.
Required: true
Default: "LossyEnqueue"
Enum Items: "Enqueue" | "EnqueueAtFront" | "LossyEnqueue" | "LossyEnqueueAtFront"
channel.SendShutdownEnqueueType enum (string)
The enqueue strategy employed on the underlying queue for the shutdown message.
Required: true
Default: "LossyEnqueueAtFront"
Enum Items: "Enqueue" | "EnqueueAtFront" | "LossyEnqueue" | "LossyEnqueueAtFront"
channel.FlushQueueBeforeWaitingOnBreak boolean
Whether to flush the queue upon waiting for new messages (i.e. whether to clear the queue and wait for the next 'new' message; this has the effect of removing old messages and waiting for the next message.
Required: true
Default: false
channel.FlushQueueAfterBreaking boolean
Whether to flush the queue after receiving a new message (i.e. whether to handle the next message coming in the queue and then flush; this has the effect of handling the oldest message (if it exsits) or the next message before flushing the queue.
Required: true
Default: false
